Creations
Round Barn Guitars produces two versions of classical guitars. The differentiation is in the top bracing pattern.
Tradional Braced
The traditional version uses a bracing pattern that has been adapted by Brian Burns. It has five fan braces with wing braces on each side of the lower bout. There are also braces in the upper bout that run under the openings of the two harmonic bars.
Open Harmonic Bar
Open Harmonic Bar was developed by Jeffrey Elliott. It differs from the traditional pattern in that it has seven fan braces and three harmonic bars, all open. The outer four fan braces run from the lower bout up to the soundhole reinforcement and the outermost braces connect with braces that run through the upper bout. This pattern was developed to get increased participation in sound production from the upper bout.
Traditional Braced Guitars
Guitar 09 (Flamenco)
27 October, 2019, 2.0 lbs (1.3 kg)
Top: European Spruce, aged 39 years at time of build
Back and Sides: Gowan Cypress
Scale Length: 25.59” (65 cm)
Resonance: 99.2 Hz, just above G (98 Hz)
Top: European Spruce, aged 39 years at time of build
Back and Sides: Gowan Cypress
Scale Length: 25.59” (65 cm)
Resonance: 99.2 Hz, just above G (98 Hz)
Guitar 11 (Expanded Model)
August 2020, 3.7 lbs (1.7 kg)
Top: Torrified Eurospruce
Back and Sides: East Indian Rosewood
Scale Length: 25.59” (65 cm)
Resonance: 93.4 Hz, just above F# (93 Hz)
Top: Torrified Eurospruce
Back and Sides: East Indian Rosewood
Scale Length: 25.59” (65 cm)
Resonance: 93.4 Hz, just above F# (93 Hz)
Open Harmonic Bar Guitars
Guitar 14
April 2021, 3.3 lbs (1.5 kg)
Top: Alpine Spruce
Back and Sides: East Indian Rosewood
Scale Length: 25.59” (65 cm)
Resonance: 98.1 Hz, G (98 Hz)
Top: Alpine Spruce
Back and Sides: East Indian Rosewood
Scale Length: 25.59” (65 cm)
Resonance: 98.1 Hz, G (98 Hz)
Guitar 17 (Lucia)
Custom built per customer spec
March 2022, 3 lb 5 oz (1.5 kg)
Top: Italian Alpine Spruce, harvested 2018
Back and Sides: East Indian Rosewood
Scale Length: 25.59″ (65 cm)
Resonance: 87.9 Hz (F 87 Hz)

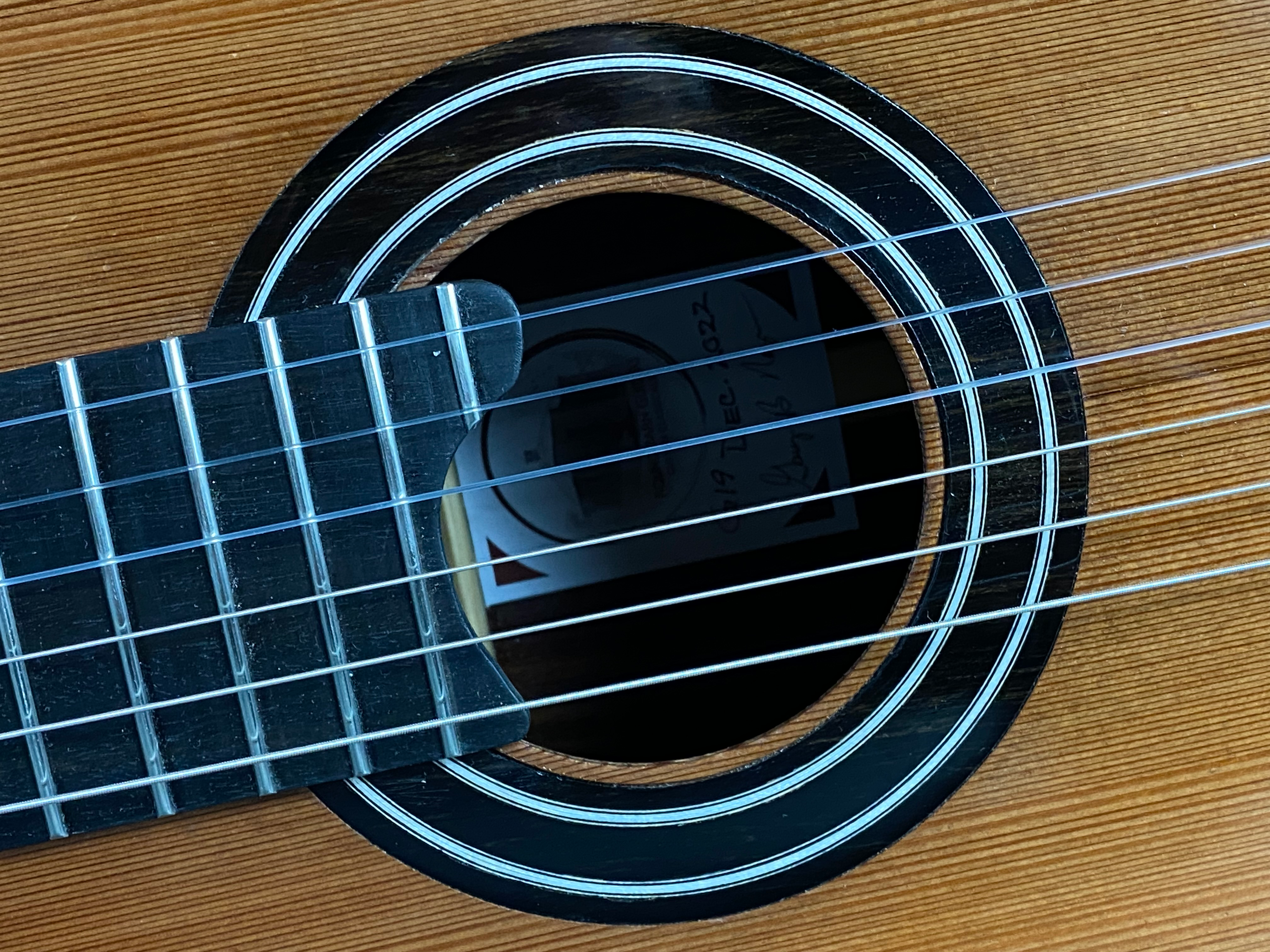

Guitar 19 (Cedar Top)
March 2023, 3.2 lbs (1.4 kg)
Top: Aged CA Cedar
Back and Sides: East Indian Rosewood
Scale Length 25.59” (65 cm)
Resonance: 70 Hz, between C# and D
Top: Aged CA Cedar
Back and Sides: East Indian Rosewood
Scale Length 25.59” (65 cm)
Resonance: 70 Hz, between C# and D
